Product NI2-Q6.5-AP6-0.1-FS4.4X3/S304
Photoelectric Sensor
Color Mark Sensor
With Switching Output
Order number: 3075040Alternative order number : 75040
- Cable with male end, PVC, 5-pin, 150 mm
- Protection class IP67
- Programmed via 2 teach buttons
- 8-segement LED display
- Adjustable on/off delay, 30 ms
- Automatic selection of red, green and blue light
- Parallel scan field relative to the housing axis
- Optics rotatable by 90°
- Operating voltage: 10…30 VDC
- PNP/NPN switching output
- Switching behavior adjustable (NO/NC)
- Teach input
General data
| EAN | 662488750404 |
| eCl@ss-Code (V5.1.4): | 27270906 -/- Color mark sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 453.59 g |
Technical Data
| Design | Rectangular |

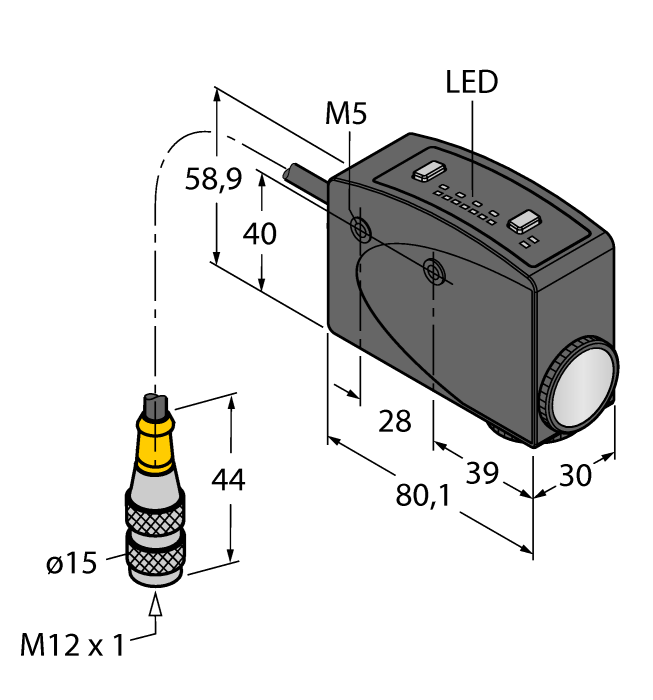

| Construction size | 80.1 x 30 x 58.9 mm, R58 |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP/NPN |
| Switching frequency | 10.0 kHz |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Metal, Zinc Alloy Die-Cast, Black-finished |
| Ambient temperature | -10…+50 °C |
| Protection class | IP67 |
| Special features | keep/defer |
