Product BI15U-M30E-VP6X-H1141
Mounting Accessories
Actuation kit (puck)
Order number: 6900136- End position damped and switchpoint adjustable

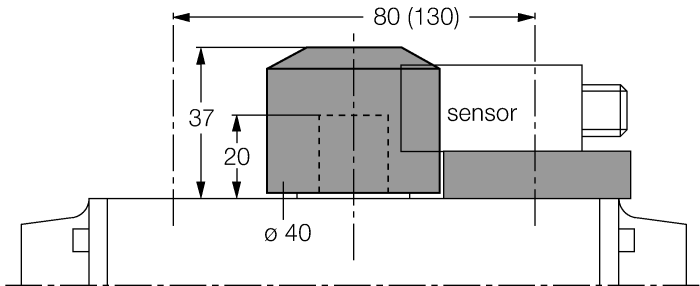

- Hole pattern on flange surface: 80 x 30 mm (130 x 30 mm)
- Connection shaft (shaft extension) height: 20 mm/Ø: max. 22 mm
General data
| EAN | 4047101112108 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 39269097900 |
| Country of origin | DE |
| Weight | 91 g |
Technical Data
| Design | Accessories for dual sensor |
| Housing material | Plastic, POM |
Mounting accessories
|
SDPB-0008D-1001
8 DO 0.5 A |
6824416 |
|
RKS4T-2/TXL
Connection cable, M12 female connector, straight, 3-pin, shielding on coupling nut; cable length: 2 m, jacket material: PUR, black; cULus approval |
6626293 |
|
FSFD54PL-0.5/M16 | 100028355 |
|
BI1.5-EG08-AP6X
Cylindrical, threaded barrel, 8 mm, stainless steel |
4602240 |
|
AIH401-N | 6884269 |
