Product BI20U-CK40-VP4X2-H1141
Cable for RFID Application in the Food Industry
Extension Cable
Order number: 6633199- Jacket material: PP-EPDM
- Jacket color: white
- Suitable for drag chain use
- Oil resistant in accordance with EN 60811-2-1
- Free from halogen and silicone
- Particularly resistant to abrasion
- RoHS II/REACH compliant
- Protection class: IP67, IP69K

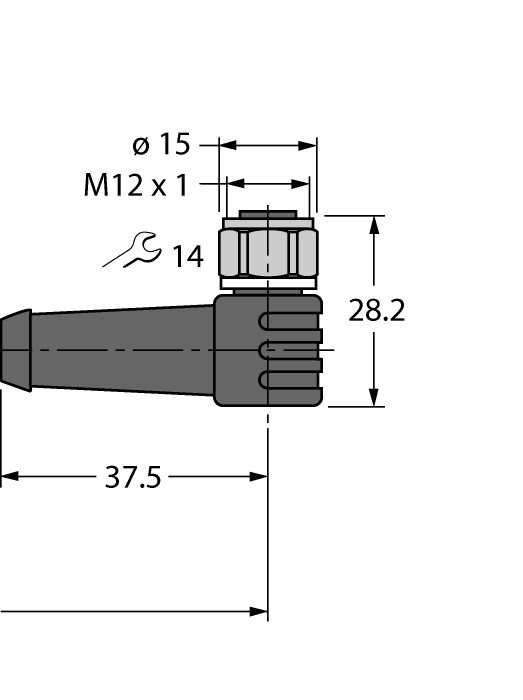

- M12 female connector, angled, stainless steel

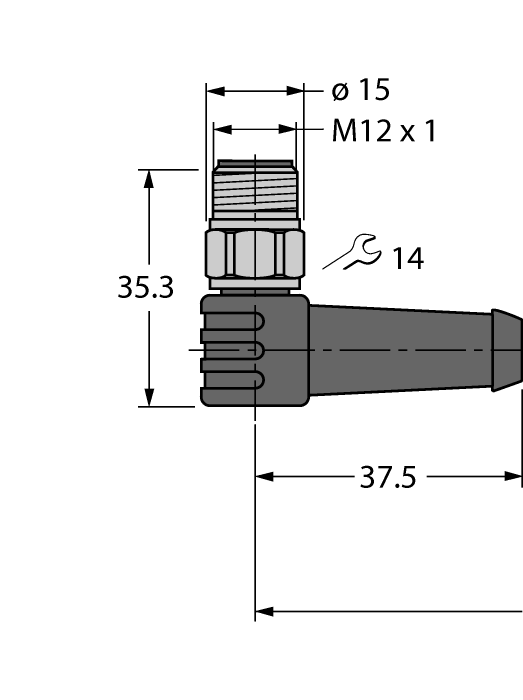

- M12 male connector, angled, stainless steel
- Cable length: 1.0 m
General data
| EAN | 4047101506501 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Cable length | 1.0 m |
| Ambient temperature | -35…+105 °C |
Data Sheets
| German | 1045 KB |
| English | 1044 KB |
| French | 1045 KB |
| Spanish | 1044 KB |
| Czech | 1045 KB |
| Dutch | 1044 KB |
| Romanian | 1045 KB |
| Russian | 339 KB |
| Polish | 1045 KB |
| Chinese | 1113 KB |
| Turkish | 1045 KB |
