Product BI2-Q4.7-AP6X
Magnetic Field Sensor
For Pneumatic Cylinders
Order number: 4685831- For C-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylindrical housings.
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 11…30 VDC
- NO contact, PNP output
- Pigtail with Ø 8 mm male connector
General data
| EAN | 4047101195927 |
| eCl@ss-Code (V5.1.4): | 27270104 -/- Magnetic inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | PL |
| Weight | 7 g |
Technical Data
| Design | Rectangular |

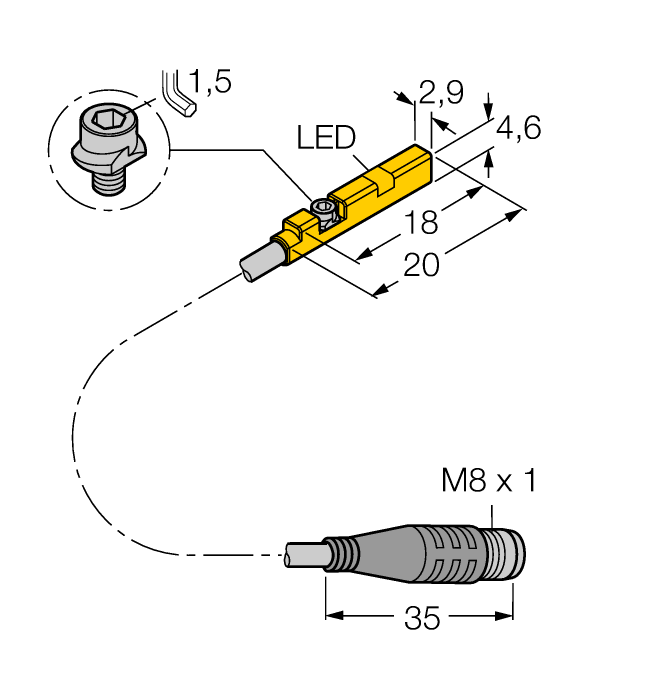

| Construction size | 18 x 2.9 x 4.6 mm, UNR |
| Operating voltage | 11…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.30 kHz |
| Electrical connection | Cable with connector, M8 × 1 |
| Cable length | 0.30 m |
| Housing material | Plastic, PP |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
