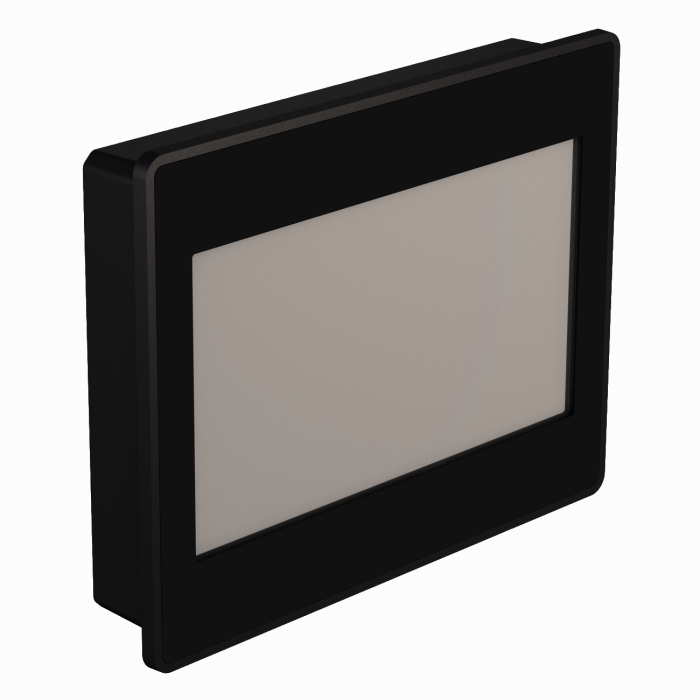

Product LI300P1-Q17LM1-LIU5X2
TX100 HMI Series
7″ Display with TX VisuPro Runtime
High-Quality Plastic Housing with a Resistive Touch Screen
Order number: 100031621- 7" TFT wide screen color display
- LED backlight
- 800 x 480 pixel resolution
- 64 K colors
- Resistive touch screen
- 1 RJ45 Ethernet port
- 1 serial interface (RS232, RS485, RS422)
- 1 USB host port
General data
| EAN | 4047101578645 |
| eCl@ss-Code (V5.1.4): | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 85371091990 |
| Country of origin | IT |
| Weight | 600 g |
Technical Data
| Protection class | IP66 front, IP20 rear |
Mounting accessories
|
REM-99S8C-3C12S12M-H1181 | 100011240 |
|
T183E W/30 | 3033927 |
|
PIRS1X166UMPMAL
Plastic fiber, sensing mode: Opposed mode, rectangular beam, side emission, preassembled wire without end tip, polyethylene jacket, ambient temperatures -30 °C…+70 °C |
3048066 |
