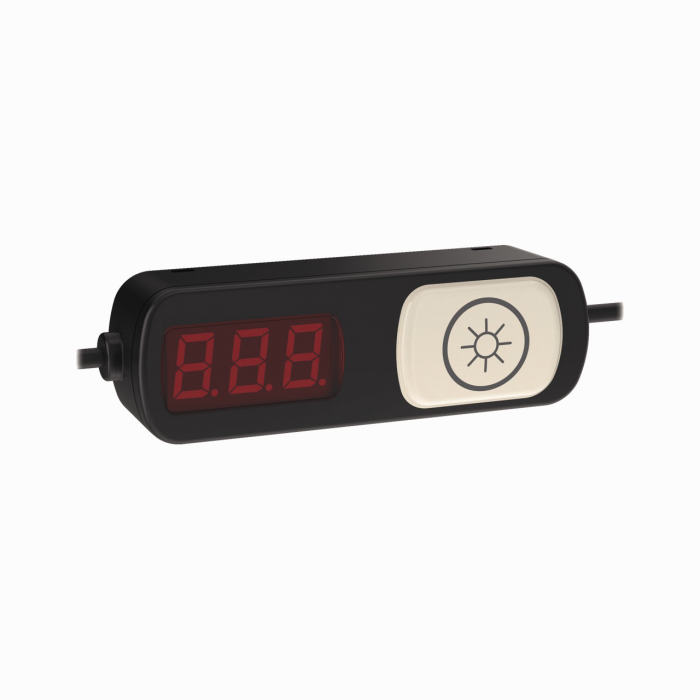

Product B2N360-Q42-E2LIUPN8X2-H1181/S97
Pick-to-Light
Placement Sensor
Order number: 3807529Alternative order number : 807529
- Protection class IP54
- Shielded cable with M12 × 1 male connector, 4-pin, 150 mm
- Operating voltage 10…30 VDC
- RGB-LED display with up to 14 different light colors
- Capacitive Sensor
- 3-digit, 7-segment display
General data
| EAN | 662488059231 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 136 g |
Technical Data
| Construction size | 110 x 35 x 33.1 mm |
| Operating voltage | 10…30 VDC |
| Communication protocol | Modbus RTU |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Plastic, ABS, Black |
| Ambient temperature | -40…+50 °C |
| Protection class | IP54 |
Data Sheets
| German | 298 KB |
| English | 296 KB |
| French | 299 KB |
| Spanish | 297 KB |
| Czech | 298 KB |
| Dutch | 297 KB |
| Romanian | 298 KB |
| Russian | 320 KB |
| Polish | 301 KB |
| Turkish | 299 KB |
General Catalog
Manual
| Instructions for Use (English) | 962 KB |
| Modbus Register Mapping | 129 KB |
| Pick-IQ Devices — Instructions for Use (DE) | 4985 KB |
Product Flyer
Connectivity accessories
|
IMC-DI-22EX-PNO/24VDC
2-channel isolating switching amplifier with M12x1 males, for peripheral use, IP67, zones 2/22, input circuits II(1) Ex ia, PNP transistor output NO |
7560003 |
Functional accessories
|
RKP56PLB-10-RSP56PLB/TXG | 100003349 |
|

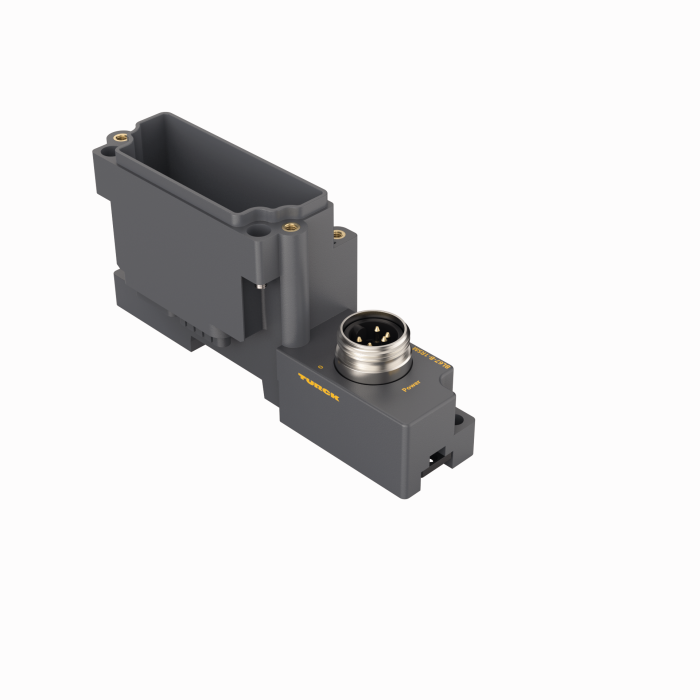

BL67-B-1RSM-VO
For PF with 5-pole 1x 7/8'' connection, only Vo supply |
6827236 |
