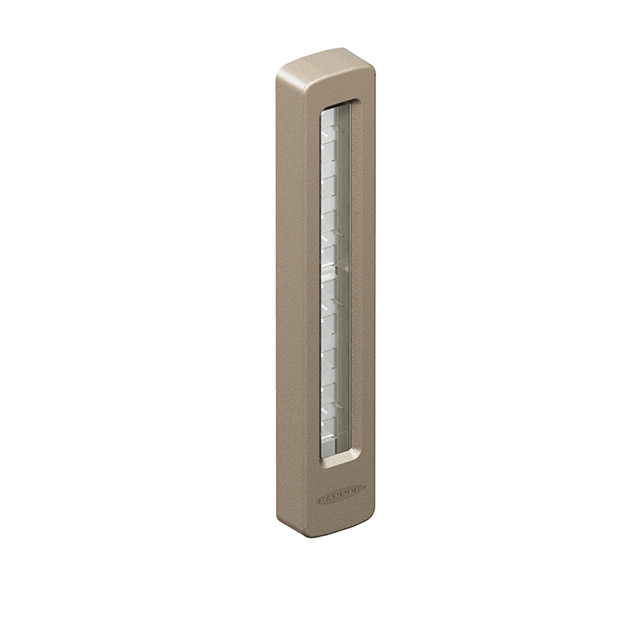

Product B2N85H-Q20L60-2LU3-H1151
LED Linear Light
In the Metal Housing
Order number: 3086864Alternative order number : 86864
- Operating voltage: 12…30 VDC
- Protection class IP67/IP69K
- Ambient temperature: -40 °C…+70 °C
- Window material: borosilicate glass
- Housing length: 340 mm
- Monochrome: Cold white
- High protection classes IP67 / IP69K
- M12 × 2 male connector, 4-pin, rear outlet
General data
| EAN | 662488868642 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054239900 |
| Country of origin | US |
| Weight | 1051 g |
Technical Data
| Construction size | 339.9 x 60.9 x 52.3 mm |
| Operating voltage | 12…30 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, Nickel-plated aluminum |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP68/IP68 |
Functional accessories
|
Q40AW3LPQ1 | 3033396 |
