Product NI4-DSC26-2Y1X2-H1140
Valve Connector, A Type
Extension Cable
Order number: 6606634- 2-pin + PE
- Design according to the DIN EN 175301-803
- RoHS-compliant
- Protection class: IP65, IP67, IP68
- Protective component: Transil diode
- M12 male, straight, 2-pin + PE
- Jacket material: PUR
- Jacket color: black
- Suitable for drag chain use
- Resistant to chemicals and oils
- UV and ozone resistance
- Flame retardant
- Free from halogen, silicone, PVC and LABS
- Cable length: 3.0 m
General data
| EAN | 4047106164843 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85444290900 |
| Country of origin | DE |
| Weight | 156 g |
Technical Data
| Cable length | 3.0 m |
| Ambient temperature | -30…+90 °C |
Mounting accessories
|

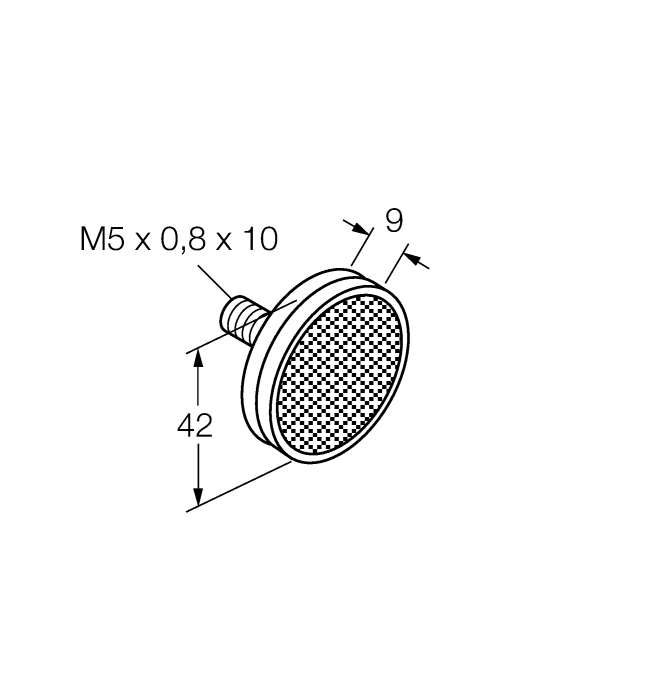

BRT-42D
Round reflector, reflection coefficient 1.0, material acrylic, ambient temperature -20 … +60 °C |
3045006 |
|

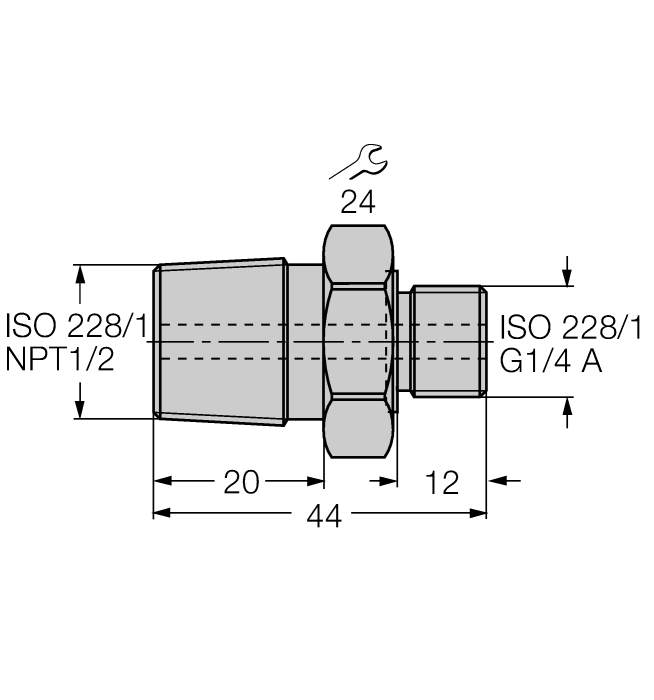

PCV-N1/2A4
Adapter G1/4” on N1/2” thread |
6835013 |
|
QS18VN6LV | 3061633 |
|
SLPMP14-1110P128 | 3084480 |
Connectivity accessories
|
RKMV-CCO | 6604485 |
Functional accessories
|
PT600R-2008-I2-H1141/X | 6836672 |
