Product DWE-3000-110-10-2B200-H1181
excom I/O System

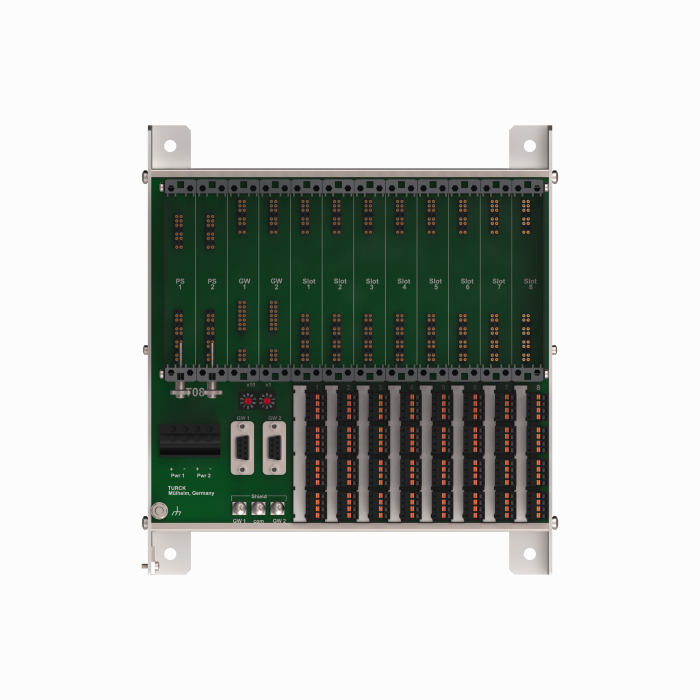

Module rack, non-Ex, for 8 modules
Order number: 9100689- Module rack for max. 8 I/O modules, 2 gateways and 2 power supply modules
- The terminals for the signal connection level are available as accessories
General data
| EAN | 4047101296815 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 85381000000 |
| Country of origin | DE |
| Weight | 1600 g |
Technical Data
| Electrical connection | 4 × 4 clamps per module |
| Housing material | Aluminium, extrusion profile |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CE |
