Product RES-185B8E-9F14B-H1151

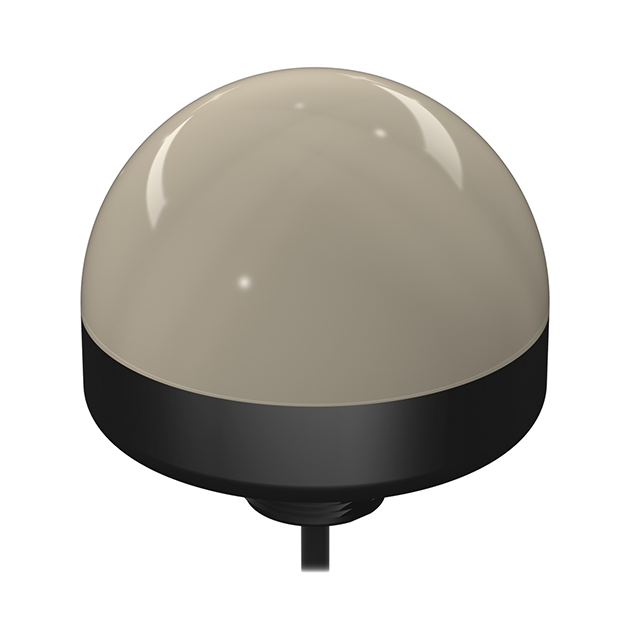

LED Signal Light
Order number: 3092813Alternative order number : 92813
- All-round LED display
- Protection class IP67
- Mechanical screw-in thread M30 x 1.5
- Cable, PVC, black, 2 m, 5-wire
- Monochrome: Green (COL 1)
- Operating voltage: 12…30 VDC
- Individually controllable
- Inputs: PNP
General data
| EAN | 662488928131 |
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85318070000 |
| Country of origin | US |
| Weight | 308 g |
Technical Data

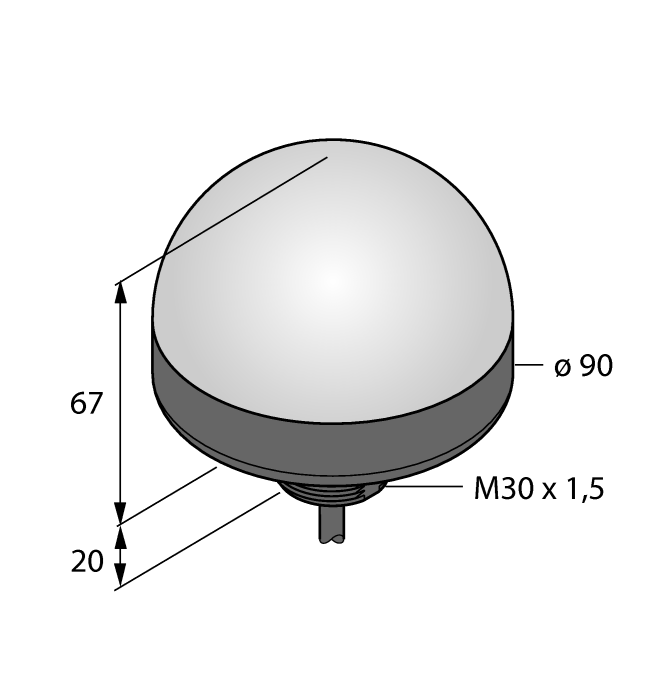

| Construction size | 87 mm |
| Operating voltage | 12…30 VDC |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, PC |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67 |
Connectivity accessories
|
RKC4.5T-3/TXO3700 | 6632035 |
