Product TTMS-206A-CF-LIUPN-H1140-L075
Field-Wireable Connector

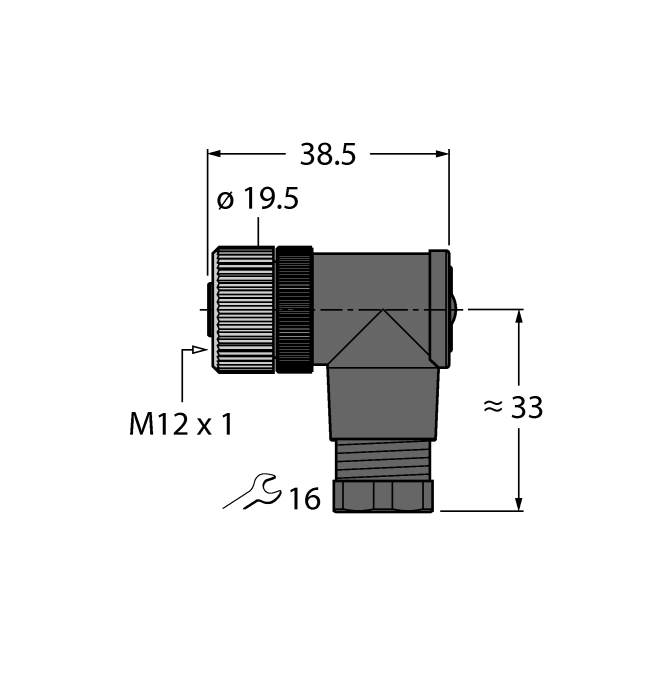

Female Connector M12 × 1, Angled
Order number: 6904603- For use in DeviceNet™/CANopen applications as well as for power supply
- A-coding
- Screw-clamp terminal
- 5-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
General data
| EAN | 4047101458404 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 19 g |
Data Sheets
| German | 345 KB |
| English | 345 KB |
| French | 345 KB |
| Spanish | 345 KB |
| Czech | 346 KB |
| Dutch | 345 KB |
| Romanian | 346 KB |
| Russian | 209 KB |
| Polish | 346 KB |
| Chinese | 419 KB |
| Turkish | 346 KB |
Approval/Declaration
| UL Approval | 400 KB |
| CE Declaration of Conformity | 120 KB |
| RoHS and REACH Manufacturer's Declaration | 280 KB |
