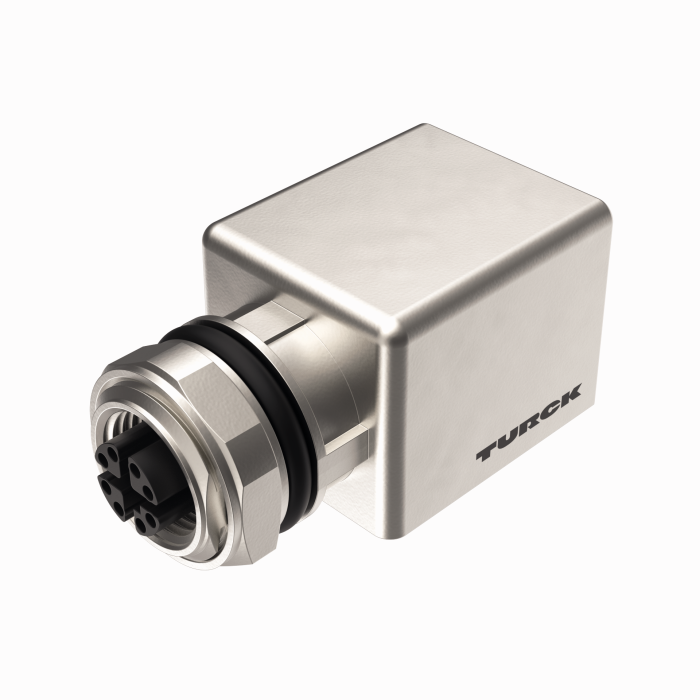

Product FKFDSX-RJ45SF-88
Accessories for Fieldbus Systems, Industrial Ethernet
Adapter and Wall Feedthrough
Order number: 100015194- Shielded, CAT6A
- Straight M12 female connector, 8-pin, X-coded
- RJ45 female connector, straight, 8-pin
- RoHS compliant
- Protection class: IP67 (M12); IP20 (RJ45)
- UL
General data
| EAN | 4047101518351 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | RO |
| Weight | 53 g |
Technical Data
| Accessory type | Adapter |
| Device type | Adapter, Wall feedthrough |
| Connector A | Female, M12 × 1, Straight, X-coded |
| Connector B | Female, RJ45, Straight |
