Product REI-E-114I12E-2B360-H1181
piconet stand-alone module for DeviceNet
1-channel Incremental Encoder Interface
Order number: 6824094- Incremental encoder interface
- 1‐channel
- Configuration interface
- Parameterizable functions
- Supported via I/O‐ASSISTANT 2
- Direct connection to the fieldbus
- Fibre-glass reinforced housing
- Shock and vibration tested
- Encapsulated module electronics
- Metal connector
- Degree of protection IP67
General data
| EAN | 4047101178197 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 279 g |
Technical Data

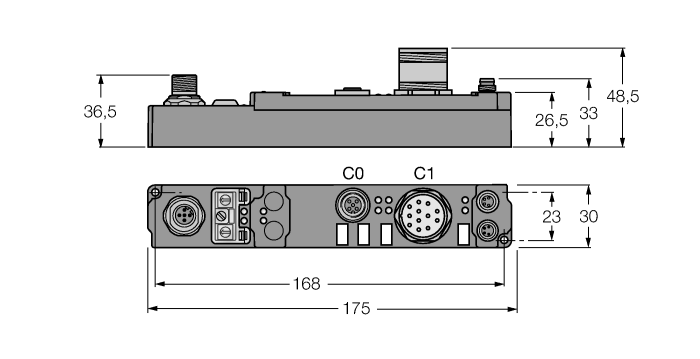

| Construction size | 175 x 30 x 26.5 mm |
| Ambient temperature | 0…+55 °C |
| Protection class | IP67 |
Connectivity accessories
|
PT4R-2004-U1-H1143 | 100048487 |
|
RSSD-RSSD-4422-18M | 6635887 |
