Product RKP54PLB-0.6-RSP54PLB/TXG

Accessories for Inductive Sensors

Actuation Kit

For DSU35 Dual Sensors

Order number: 6901070

Actuator made of plastic
End position damped
6.2-mm-wide stainless steel target to compensate for application-specific higher tolerances (e.g. due to rubber seals)
End positions (open/closed) freely adjustable in a range of 360°, in increments of 4°
Displays rotatable by 90°
Scale division as an adjustment aid

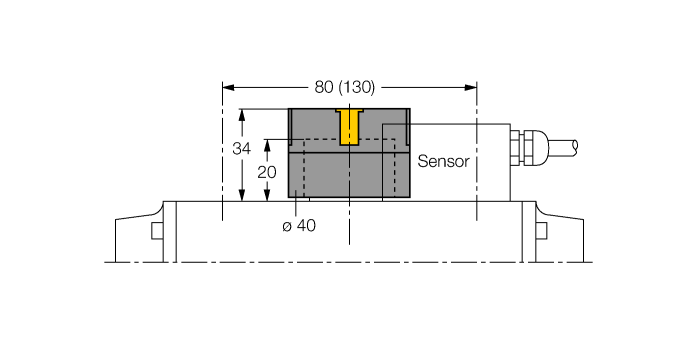

Hole pattern on flange: 30 × 80 mm (30 × 130 mm)
Connection shaft (shaft extension) height: 20 mm/Ø: max. 30 mm
Mounting screws for sensor and actuator are included
Maximum slide ring diameter: 34 mm

EAN	4047101198669
eCl@ss-Code (V5.1.4):	27279201 -/- Connectivity (accessories sensors)
Customs tariff number	39269097900
Country of origin	US
Weight	34.019 g

2D (DWG)	1008 KB
3D-1 (STP)	4031 KB

Montagehinweise	725 KB
