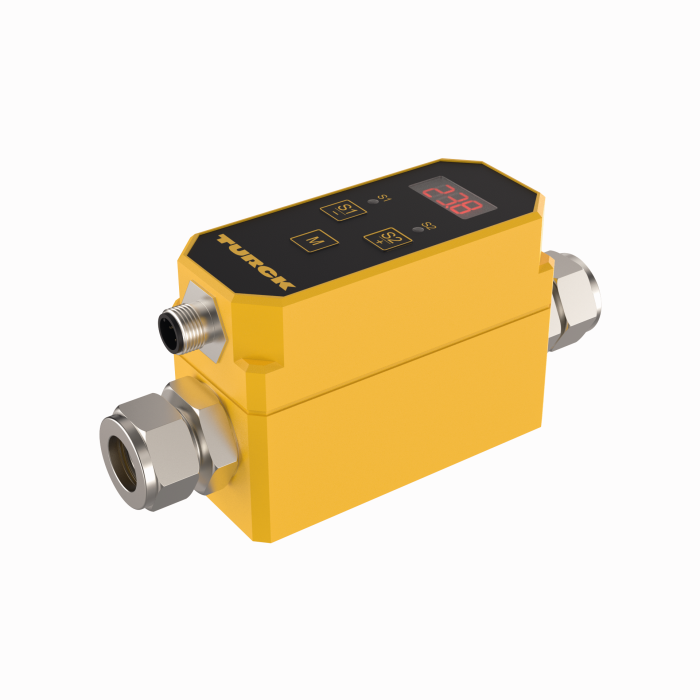

Product PS510-250-02-2UPN8-H1141
Flow Rate Monitoring
Inline Sensor with Integrated Processor
Order number: 6870043- Compact inline flow sensor
- Calorimetric principle
- Monitoring of flow rate
- Monitoring of the medium temperature
- For water/glycol mix
- Parametrized via button
- Protected by software code
- DC 4-wire
- PNP outputs
- NO/NC programmable
General data
| EAN | 4047101171747 |
| eCl@ss-Code (V5.1.4): | 27200403 -/- Flow meter (mass, thermal) |
| Customs tariff number | 90261021000 |
| Country of origin | DE |
| Weight | 628 g |
Technical Data
| Design | Inline |
| Process connection | Compression fittings for pipes Ø 15 × 1.5 (EN10305-1) |
| Operating voltage | 21.6…26.4 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT |
| Medium temperature | -10…+90 °C |
| Ambient temperature | 0…+60 °C |
| Protection class | IP65 |
