Product TN-UHF-Q180L300-EU-OPC-UA
Inductive Sensor
With Increased Temperature Range

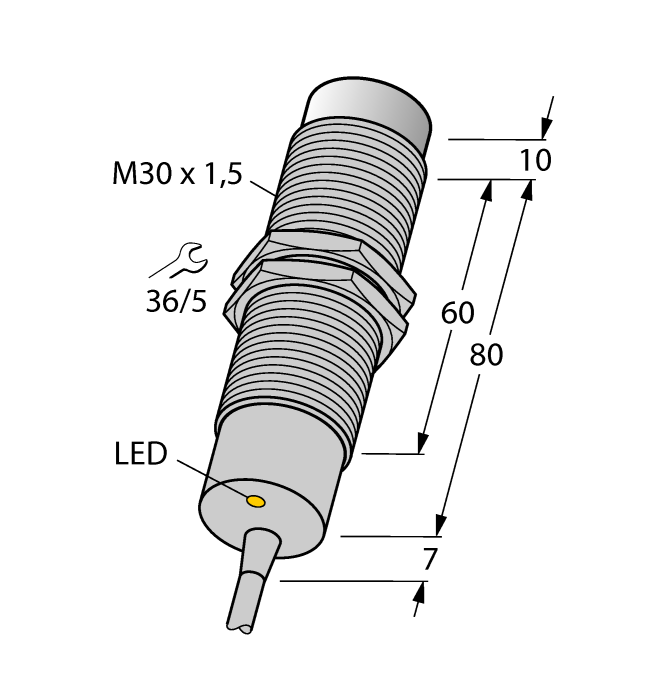

Order number: 4316506- M30 × 1.5 threaded tube
- Chrome-plated brass
- Temperatures up to +120 °C
- AC 2-wire, 20…250 VAC
- NO contact
- Cable connection
General data
| EAN | 4047101170313 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 295 g |
Technical Data
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Mounting conditions | Non-flush |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+120 °C |
| Protection class | IP67 |
