Product RI20P1-QR20-LU4X2
LED Linear Light
In the Metal Housing
Order number: 3087492Alternative order number : 87492
- Cascadable
- ON/OFF switch
- Operating voltage: 90…264 VAC
- Color: White
General data
| EAN | 662488874926 |
| eCl@ss-Code (V5.1.4): | 27119002 -/- Work light |
| Customs tariff number | 94054239900 |
| Country of origin | MX |
| Weight | 2000 g |
Technical Data

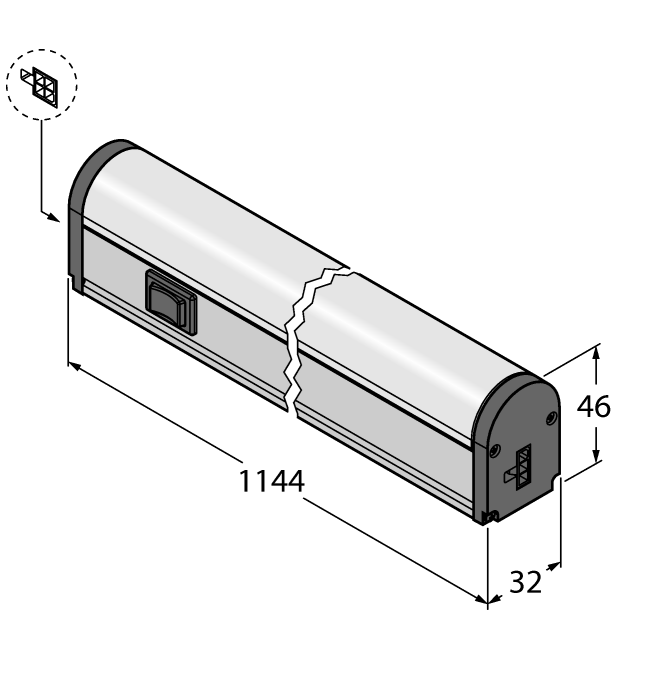

| Construction size | 1144 x 32 x 46 mm |
| Operating voltage | 90…264 VAC |
| Electrical connection | Connector |
| Housing material | Metal, AL |
| Ambient temperature | -25…+45 °C |
| Protection class | IP50 |
Mounting accessories
|
REI-10SA1S-2B1024-H1181 | 100010324 |
|
RKC5.301T-1.5-RSC4T/TXL320
Adapter cable (for uses such as connecting the sensor to the USB-2-IOL-0002 programming unit); M12 female connector, straight, 5-pin to M12 male connector, straight, 3-pin; cable length: 1.5 m; jacket material: PUR, black; cULus approved; RoHS compliant; protection class IP67 |
6625005 |
