Product PT100R-2004-U3-H1141/X
Sensing Tip
Plastic Fiber
Order number: 3023268Alternative order number : 23268
- For level measurements with fork plastic optical fibers of the type PBT46U and PBT26UM6M.1

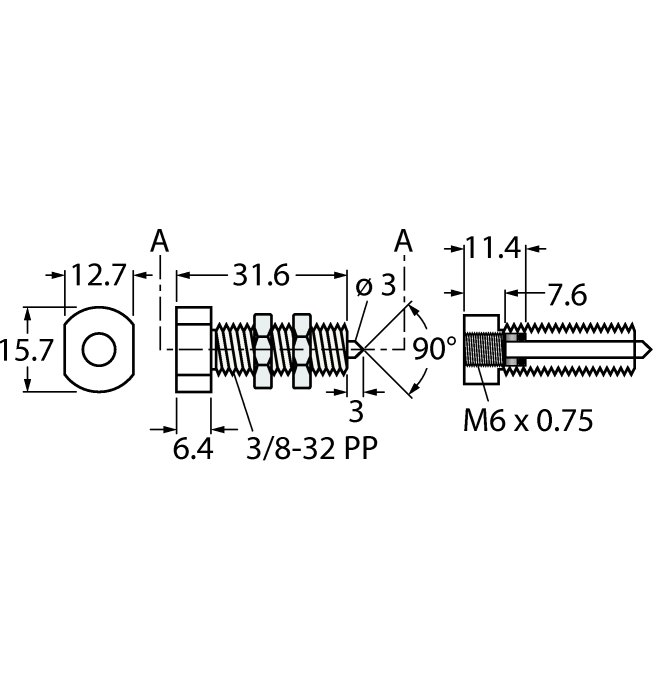

- Housing made of polypropylene with 3/8-32 male thread
- Probe made of quartz glass
- ambient temperature of -30 °C…+70 °C
General data
| EAN | 662488232689 |
| Customs tariff number | 39269097900 |
| Country of origin | US |
| Weight | 40 g |
Technical Data
| Design | Threaded barrel |
| Housing material | Plastic |
| Materials (contact with media) | Quartz |
| Medium temperature | -30…+70 °C |
| Ambient temperature | -30…+70 °C |
| Protection class | IP67 |
Connectivity accessories
|
LE550DC1 W/30 | 3095384 |
|
BSS-08
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901322 |
|
RSC4.4T-15/TXG | 6634164 |
|
TI-BL20-E-EN-S-6
BL ident interface set |
7030632 |
