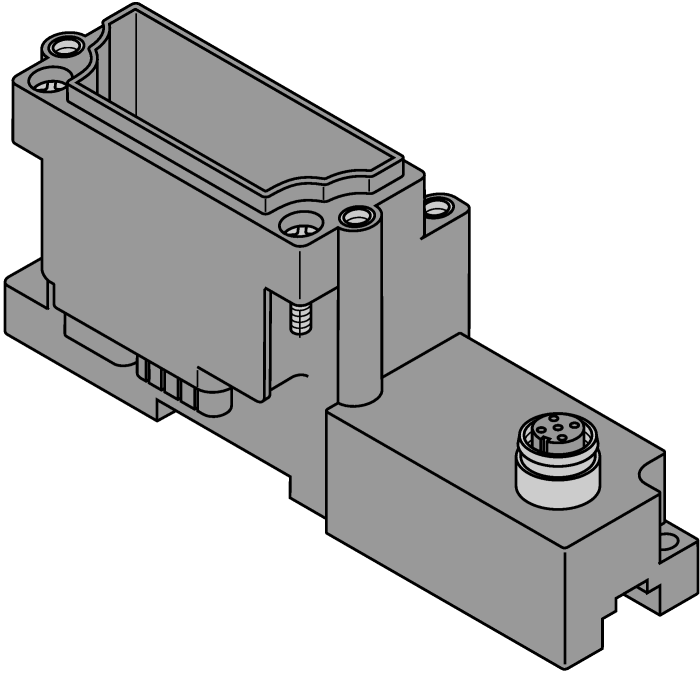

Product RKCV4.4T-2/TXL
BL67 base module
1 × M12 Connector, 5-pin
Order number: 6827185- Passive connection components for sensors and actuators
- Quick replacement of electronics in wired state
- Mechanical coding prevents incorrect electronic modules from being plugged in accidentally
- Protection class IP67
- M12 connection technology
- 5-pin
- 1 port
General data
| EAN | 4047101109122 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 167 g |
Technical Data
| Connector A | Female Receptacle, M12 × 1, Threaded |
| Number of pins | 5 |
| Flange housing | Brass, CuZn, Nickel-plated |
| Flange housing | Brass, CuZn, Nickel-plated |
| Voltage | 60 V |
| Current | 4 A |
| Protection class | IP67 |
| Approvals | cULus |
