Product RKC4.4T-2/TXL1001

Actuator, Sensor and Supply Cable, PVC

Extension Cable

Order number: 6633158

Female M8, straight, 4-pin

Female M8, straight, 4-pin

Jacket material: PVC
Jacket color: black
Resistant to chemicals and oils
Flame retardant
Resistant to acids and alkaline solutions
Resistant to microbes and hydrolysis
LABS free
Protection class: IP67, IP69K

Cable length: 1.0 m

Hide All Open All

Specifications
Download
Accessories

General data

EAN	4047101489293
eCl@ss-Code (V5.1.4):	27250107 -/- Connection cable sensor-actuator
Customs tariff number	85444290900
Country of origin	CN
Weight	1 g

Technical Data

Application	Signal
Design	Extension Cable
Connector A	Female, M8 × 1, Straight
Number of pins	4
Connector body	Plastic, TPU, Black
Coupling nut/screw	Brass, CuZn, Nickel-plated

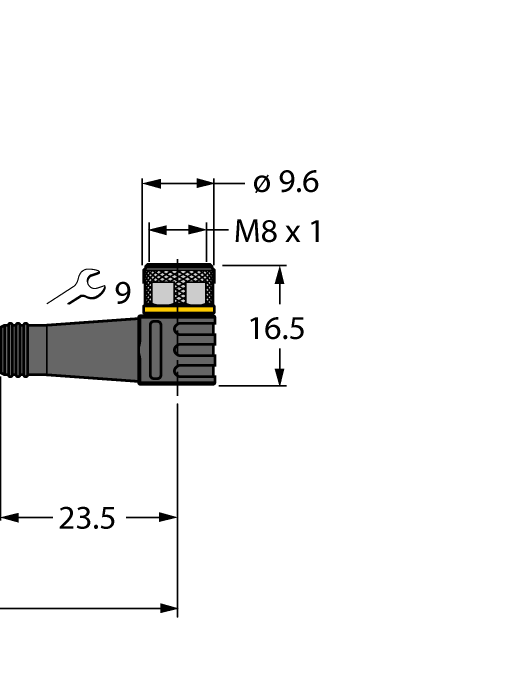

Connector B	Female, M8 × 1, Angled
Number of Pins	4
Connector body	Plastic, TPU, Black
Coupling nut/retaining screw	Brass, CuZn, Nickel-plated
Current	4 A
Cable diameter	Ø 4.6 mm
Cable length	1.0 m
Cable jacket	PVC, Black
Number of Conductors	4
Protection class	IP67, IP69K
Approvals	cULus

Data Sheets

German	476 KB
English	476 KB
French	477 KB
Spanish	477 KB
Czech	477 KB
Dutch	476 KB
Romanian	477 KB
Russian	592 KB
Polish	477 KB
Chinese	542 KB
Turkish	478 KB

Approval/Declaration

UL Approval	177 KB
CE Declaration of Conformity	654 KB

General Catalog

Connectivity	11874 KB

Product Flyer

M12 Power Product Series	1863 KB
Connectivity Preferred Program	799 KB

Product Overview

Connection and Distribution	744 KB
Connection technology type code	390 KB

Mounting accessories

	K50ALBT2GRHQ	3802582
	REI-12HA4E-4B2048-H1181	100010541
	SLLP40-630P88	3089717
	T8AP6RQ	3066668
	RKC4.5T-8-RSC4.5T/TXY6713	6634974
	REM-104HA1T-3C13S12M-H1181	100011399
	PSGS4M-PSGS4M-4414-3.5M	100000308
	PS01VR-501-2UP8X-H1141	6831832

Connectivity accessories

	TCG20-CC Replacement connector for CAN interface.	100002936
