Product KLI3
Cable for DeviceNet and CANopen
Verbindungsleitung

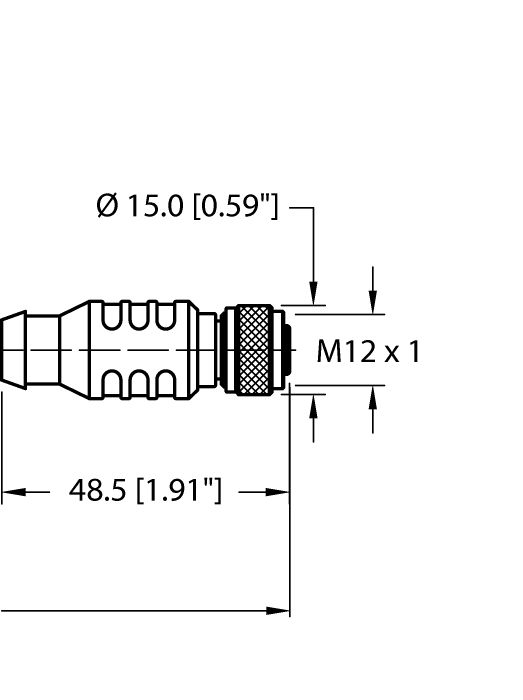

Order number: U0323- M12 female connector, straight, A-coded

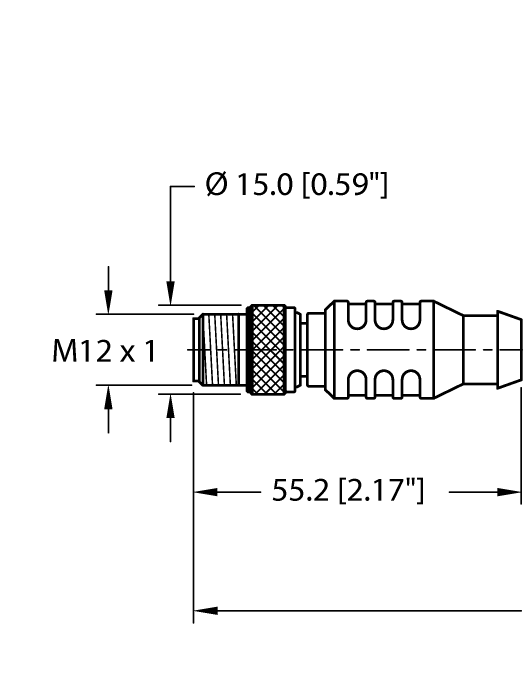

- M12 male connector, straight, A-coded
- M12 male connector, straight, 5-pin, A-coded
- M12 female connector, straight, 5-pin, A-coded
- Litzen paarverseilt; geschirmt
- Fieldbus Technology Cable
- Fieldbus type: DeviceNet, PVC jacket, gray, shielded, 2STP × 22 AWG
- UV resistant
- Fire classes: UL 1685 FT4, UL1061, CSA FT4
General data
| EAN | 4047101035049 |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 150 g |
Technical Data
| Network protocol | DeviceNet |
| Connector B | M12 × 1 |
| Cable length | 2.0 m |
| Ambient temperature | 5…+80 °C |
