TURCK's decentralized roller motor controller TBEN-LLH-4RMC is available for Interroll, MTA, and MPC motors
IP67 CAN Roller Motor Control with IO-Link Master
TURCK expands the TBEN-LL-4RMC series with variants featuring IO-Link and 24/48 V option

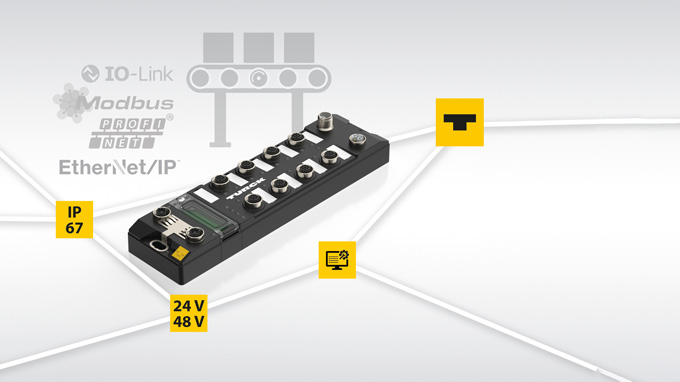

The TBEN-LL-4RMC series from TURCK controls up to four CANopen-based motors directly in the field. In addition to Interroll motors, the robust IP67 module also supports drive rollers from MTA and MPC. The new variants feature IO-Link master ports for integrating smart sensor technology and enable connection via standard M12 L-pinning. This allows conveyor systems to be automated in a modular fashion without a control cabinet.
Your Benefits
• Flexible integration thanks to IO-Link and standard pinning
• Decentralized IP67 control enables automation without a control cabinet
• Easy implementation of ZPA and conveyor logic
• High availability thanks to robust housing
Decentralized logic for simple, zero pressure conveying
The TBEN-LL-4RMC modules combine motor control, digital I/Os, and IO-Link in a robust IP67 housing. Users benefit from multi-protocol Ethernet and programming-free ARGEE logic for decentralized control systems. The 24 or 48 V power supply increases flexibility and supports the trend toward energy-efficient drives. Preprogrammed logic facilitates the implementation of zero pressure accumulation and other conveyor strategies.
Connection of 24 V or 48 V motors
The module supports the trend toward 48 V drives in intralogistics, material flow, and production logistics. The technology allows for smaller cable cross-sections and longer cable lengths, which improves the efficiency and cost balance of the power supply. The new IO-Link variants enable the integration of signal lights, pressure sensors, or other intelligent devices. TURCK offers the controllers in four variants: TBEN-LLH-4RMC, TBEN-LL-4RMC, TBEN-LLH-4RMC-2IOL, and TBEN-LL-4RMC-2IOL.
INDUSTRIES
- Logistics
- Intralogistics
- Conveyor technology in all manufacturing industries
KEY FUNCTIONS
- Control of roller motors with CAN interface directly in the field (IP67) – Interroll EC5000 BI, MTA, MPC
- Ready-made application examples available for free use
- Operation of 24 or 48 V motors
- 4 CAN ports
- 4 universal digital I/Os
RELATED CONTENT
At a Glance: Digital Conveyor Lines
Modularization and digitization increase flexibility, scalability and availability of your conveyor technology. Learn more!

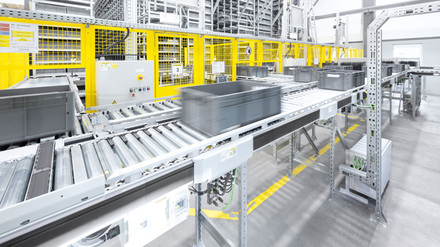

Case Study: Efficient Solution for the Digitalization of Conveyor Technology
